BackPlane Module 48 VDC Input

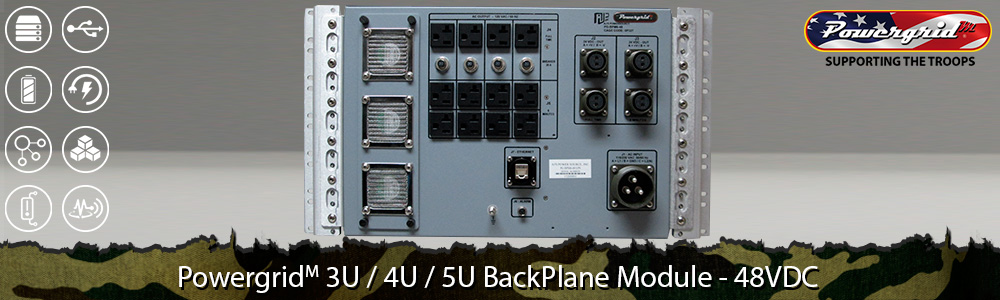

PowergridM 3U / 4U / 5U BackPlane Module – PG1500 Version
Part Number: PG-BPM5-48
The PG-BPM x(3/4/5)-48 is a PowergridM BackPlane Module That Hosts the Plug-And-Play Integration of Selected PowergridM UPS, Battery Expansion (BXM), AC to DC Power Solutions and VDC UPS Modules Into an Integrated Stack Configuration.
The BPM(X)-48 is designed for the PG1500 systems and can be ordered in various slot sizes from 3U to 5U Rackmount slots. The unit weighs 15 pounds (5 Slot version) and is 8.75” in height, 3.15” in depth, and 14.63” in width for a standard Rackmount solution. The BPM mounting brackets are designed to mount to rear of a standard 19” rack enclosure while maintaining the rear mounting whole locations for the mounting of the PowergridM.
MIL STD 461 UPS | MIL STD 810 UPS
EMI / EMC – PowergridM UPS system has been designed to comply with all the radiated emissions, susceptibility and conductive emissions requirements of the applicable sections of MIL STD 461F. The following is a list of methods used for controlling emissions: RE102 | CE102 | CS101 | CS114 | CS115 | CS116 | RS103 DESIGNED TO MEET
Environmental MIL-STD-810G: Humidity, Altitude, Sand and Dust, Shock and Vibration, Temperature.
Highlights
• Single 100-264VAC Input Power for the integrated Stack. (Optional Voltages and Phase configurations available).
• Multi-BackPlane Synchronization Port for BackPlane stacking.
• Critical Equipment VAC Connections for Connection of Equipment.
• Optional Non-Critical Equipment VAC Connections (Power Shedding) with No Extended Battery Support.
• Consolidated SNMP Port for Network Monitoring of Stacked Units.
• Consolidated Lightning Protection and Safety Ground.
• 3 to 5 VDC primary power loss alarm port for connection of a remote audio or visual indicator.
• Extended Air Intake and Exhaust Plenums for Attached Units.
1U 800 watts UPS – Standalone Stackable to:
800 watts UPS | 1600 watts UPS | 2400 watts UPS | 3200 watts UPS
1U 800 watts UPS – BackPlane Stackable to:
1600 watts UPS | 2400 watts UPS | 3200 watts UPS | 4000 watts UPS
1U 1000 watts UPS – Standalone Stackable to:
1000 watts UPS | 2000 watts UPS | 3000 watts UPS | 4000 watts UPS
1U 1500 VA UPS – Standalone Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS
1U 1200 watts UPS – Standalone Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS
1U 1500 VA UPS – Backplane Stackable to:
1500 VA UPS | 3000 VA UPS | 4500 VA UPS | 6000 VA UPS | 7200 VA UPS
1U 1200 watts UPS – Backplane Stackable to:
1200 watts UPS | 2400 watts UPS | 3600 watts UPS | 4800 watts UPS | 6000 watts UPS
2U 3000 VA UPS – Standalone Stackable to:
3000 VA UPS | 6000 VA UPS | 9000 VA UPS
2U 2400 watts UPS – Stackable to:
2400 watts UPS | 4800 watts UPS | 7200 watts UPS
-
• AC Input Voltage: 100 – 264 VAC, 47 – 63, 400 Hz.
(Single, Dual, and Three Phase options available).
• Available AC Output Voltages: 120 or 230 VAC True Sine wave.
• Output Frequency: 50Hz or 60Hz.
• Available DC Output Voltages: 12, 24, 48VDC.
• Harmonic Distortion: <2% with resistive load. • Output Power: Up to 12,000 Watts (Two 5U Stacks).
• Efficiency: 80%.
• Startup Time: <30 Seconds. • Status & Monitoring: SNMP.• Physical Dimensions: (3U – 5.3”H/14.63”W/3.15”D) (4U – 7”H/14.63”W/3.15”D) (5U – 8.75”H/14.63”W/3.15”D).
• Weight: 15 Lbs.
• Altitude: 10,000 Ft Operating – 40,000 Ft Non-Operating.
• Temperature: – 20 to +50C.
• Humidity: 90% non-condensing.
• Fungus: In accordance with MIL-STD-810F.
• Sand and Dust: MIL-STD-810F (with optional filters).
• Vibration: Designed for MIL-STD-810G.
• Functional Shock: Designed for MIL-STD-810G. -
